Script Mode

Script mode buttons run Python code when clicked.
Useful for IK/FK switching, toggling rig options, selecting control sets, or any custom automation.

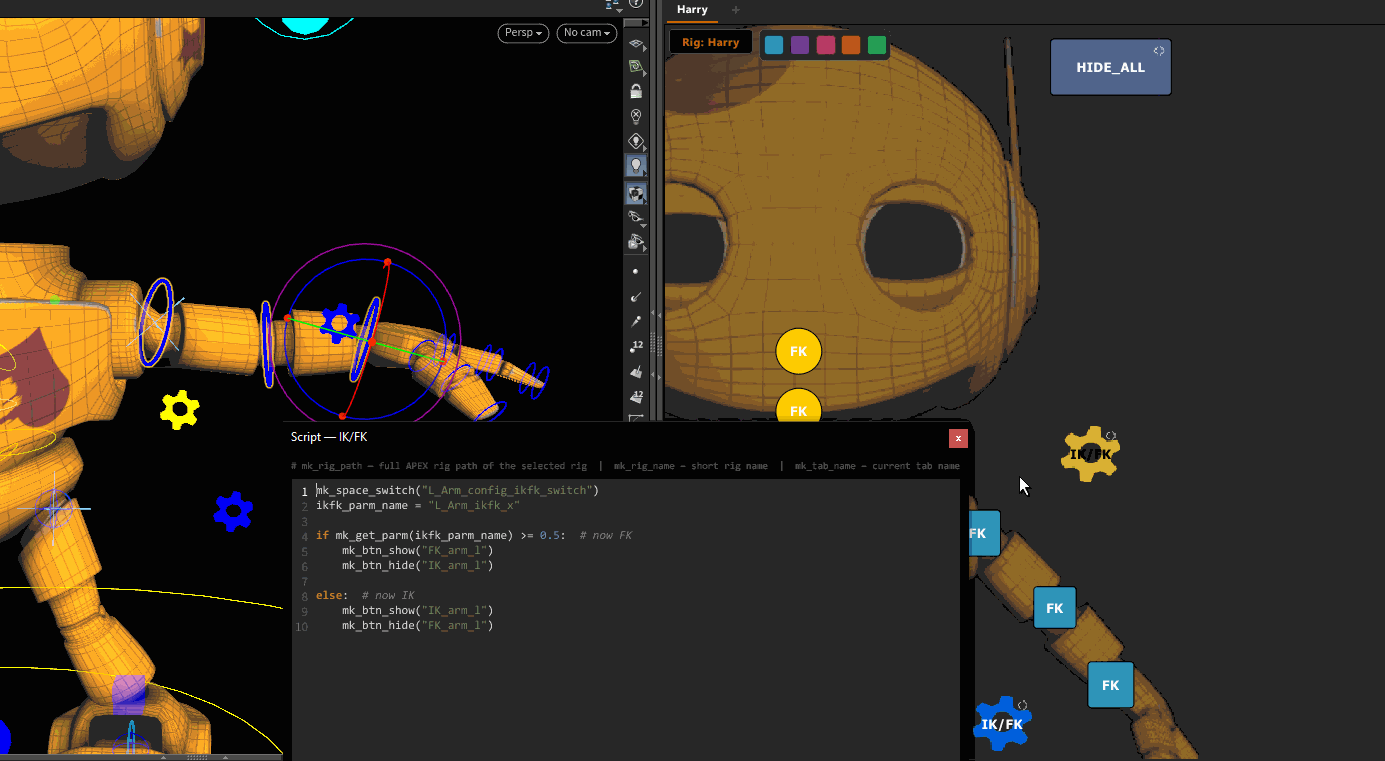

Setting Up a Script Button

1. Right-click a button → Script (works in any mode)
2. Right-click the button → Edit Script
3. Write your code in the editor and click Save

The editor supports Python syntax highlighting, line numbers, and 4-space indentation.

---

Injected Variables

Available automatically — no import needed:

Variable	Type	Description
mk_rig_path	str	Full APEX rig path of the selected rig. Empty if set to None.
mk_rig_name	str	Short rig name (first path segment).
mk_tab_name	str	Name of the tab the button lives on.

Injected Functions

Function	Description
mk_get_parm / mk_set_parm / mk_toggle_parm	Read, set, or toggle a rig graph parm.
mk_space_switch	Match-and-switch (IK/FK snap).
mk_show_ctrls / mk_hide_ctrls / mk_toggle_visibility	Show, hide, or toggle control visibility.
mk_select_ctrls	Select controls in the viewport.
mk_btn_disable / mk_btn_enable / mk_btn_hide / mk_btn_show	Control picker button state by tag.
mk_sync_ctrls	Force control manager to flush pending visibility changes.
mk_state	Raw APEX animate state — for advanced use.

All functions operate on the current rig automatically. See Script API Reference for full signatures and examples.

---

Examples

IK/FK Toggle

import apex.ui.statecommandutils as scu

if not mk_rig_path:
    print("No rig selected")
else:
    rig = scu.getSceneData(mk_rig_path)
    parms = rig.graph_parms
    current = parms.get("L_arm_ikfk_x", 0.0)
    parms.set("L_arm_ikfk_x", 0.0 if current >= 0.5 else 1.0)

Select All Controls on Current Rig

import apex.ui.statecommandutils as scu

if mk_rig_path:
    ctrl_mgr = scu.getSceneControlManager()
    all_ctrls = [p for p in ctrl_mgr.controls if p.startswith(mk_rig_path)]
    scu.sendCommand("selectControls", {
        "controls": all_ctrls,
        "controls_in_tree_format": False,
    })

Tab-Specific Logic

if mk_tab_name == "Body":
    print("Body tab")
elif mk_tab_name == "Face":
    print("Face tab")

---

Notes

• Always check mk_rig_path before using it — it is empty when the rig menu is set to None.
• Errors print to the Houdini Python console. Add print() statements to debug.
• Use import normally for anything else (hou, apex, etc.).

For the full helper and API reference see Script API Reference.

---
