Script API Reference

Full reference for script mode buttons. For an overview see 04 — Script Mode.

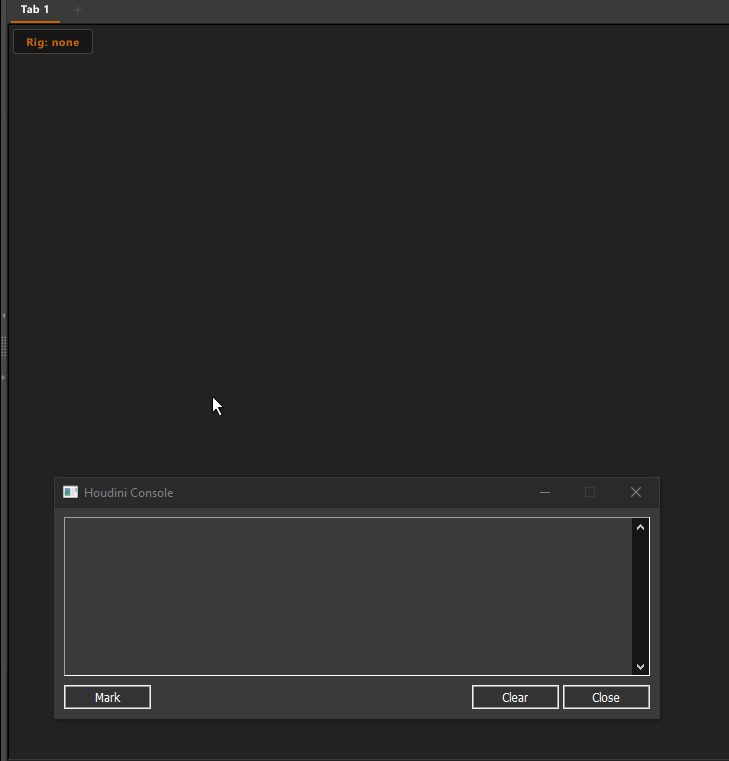

Setting up a Script Button

Right-click a button → Script (works in any mode)
Right-click the button → Edit Script
Write your Python code and click Save

script mode

Injected Variables

Available automatically when the script runs — no imports needed:

Variable	Type	Example value	Description
`mk_rig_path`	`str`	`/electra_wood.char/Base.rig`	Full APEX rig path of the rig currently selected in the picker menu. Empty string if set to None.
`mk_rig_name`	`str`	`electra_wood.char`	First path segment of the rig — useful as a short identifier.
`mk_tab_name`	`str`	`Body`	Name of the tab the button lives on.

Injected Functions

Also available automatically — all operate on the current rig:

Function	Description
`mk_get_parm(parm_name)`	Read a graph parm value from the current rig.
`mk_set_parm(parm_name, value, ctrl="")`	Set a graph parm value and update the viewport.
`mk_toggle_parm(parm_name, ctrl="")`	Toggle a graph parm between two float values.
`mk_space_switch(ctrl_name, set_keys=False)`	Trigger a match-and-switch (IK/FK snap) on a space-switch control.
`mk_show_ctrls(ctrl_names)`	Show a list of controls by short name.
`mk_hide_ctrls(ctrl_names)`	Hide a list of controls by short name.
`mk_toggle_visibility(ctrl_names)`	Toggle visibility — any visible → hide all, all hidden → show all.
`mk_select_ctrls(ctrl_names)`	Select controls in the viewport by short name. Accepts a string or list.
`mk_btn_disable(tags)`	Gray out picker buttons that have the given tag(s). They become non-clickable.
`mk_btn_enable(tags)`	Re-enable picker buttons that have the given tag(s).
`mk_btn_hide(tags)`	Hide picker buttons that have the given tag(s).
`mk_btn_show(tags)`	Show picker buttons that have the given tag(s).
`mk_sync_ctrls()`	Force the control manager to process pending visibility changes. Call after show/hide if controls don't update immediately.
`mk_state`	Raw APEX animate state object. For advanced use when the helpers aren't enough.

Finding the Right Parm and Ctrl Names

Before writing a toggle button you need two things: 1. The parm name — the graph parm that stores the value (e.g. R_arm_ikfk_x) 2. The ctrl name — the abstract controller that drives it (e.g. R_arm_config_ikfkblend)

Step 1 — Print all arm parms

Run this in a script button (or the Houdini Python Shell) to see all parms for a limb:

import apex.ui.statecommandutils as scu

rig = scu.getSceneData(mk_rig_path)
parms = rig.graph_parms
for k, v in sorted(parms.items()):
    if "R_arm" in k:
        print(k, "=", v)

On Electra this prints (among others):

R_arm_config_ikfkblend = 0.0
R_arm_config_ikfk_switch = False
R_arm_ikfk_x = 0.0

R_arm_ikfk_x — the blend float (0 = IK, 1 = FK). Use mk_toggle_parm.
R_arm_config_ikfk_switch — the match-and-switch trigger. Use mk_space_switch.

Step 2 — Find the ctrl name for a float parm

The ctrl is the short name of the abstract controller that owns the parm. To find it, click the IK/FK slider in the APEX viewport and check the Selected controls list — the controller whose name contains ikfkblend is the one.

You can also print the control map:

import apex.ui.statecommandutils as scu

state_args = {}
scu.sendCommand("getState", state_args)
state = state_args.get("state")
ctrl_mgr = state.control_manager

rig_path = mk_rig_path
for path, ctrl in ctrl_mgr.controls.items():
    if "R_arm_config" in path:
        print(path)

On Electra the relevant controllers are:

/electra.char/Base.rig/R_arm_config_ikfkblend   ← drives R_arm_ikfk_x
/electra.char/Base.rig/R_arm_config_ikfk_switch ← match-and-switch trigger

The short name (without rig path prefix) is what you pass as ctrl.

Example: IK/FK Toggle with Linked Visibility

Toggles the blend and swaps which controls are visible. Replace the parm/ctrl names and control lists with the ones from your character:

fk = ["L_Hand_fk", "L_Lowerarm_Twist_01_fk", "L_Upperarm_fk", "L_Upperarm_Twist_01_fk", "L_Lowerarm_fk"]
ik = ["L_armTarget_ik", "L_armPolevec_ik", "L_armRoot_ik"]

ikfk_parm_name = "L_arm_blendikfkblend_x"

mk_toggle_parm(ikfk_parm_name, ctrl="L_arm_blendikfkblend_abst")

if mk_get_parm(ikfk_parm_name) >= 0.5:  # now FK
    mk_show_ctrls(fk)
    mk_hide_ctrls(ik)
else:  # now IK
    mk_show_ctrls(ik)
    mk_hide_ctrls(fk)

Example: IK/FK Blend Toggle (Electra)

Toggles the arm between IK and FK smoothly (0 ↔ 1):

mk_toggle_parm("R_arm_ikfk_x", ctrl="R_arm_config_ikfkblend")

Example: IK/FK Match-and-Switch (Electra)

Snaps the IK or FK controls to match the current pose, then switches:

mk_space_switch("R_arm_config_ikfk_switch")

Pass set_keys=True to also key the controls at the current frame:

mk_space_switch("R_arm_config_ikfk_switch", set_keys=True)

Parm Helper Reference

`mk_get_parm(parm_name, default=0.0)`

Returns the current value of a graph parm on the active rig.

val = mk_get_parm("R_arm_ikfk_x")

`mk_set_parm(parm_name, value, ctrl="")`

Sets a graph parm and pushes the update to the viewport and channel editor.

mk_set_parm("R_arm_ikfk_x", 1.0, ctrl="R_arm_config_ikfkblend")

`mk_toggle_parm(parm_name, ctrl="", on=1.0, off=0.0, threshold=0.5)`

Reads the current value and flips between on and off.

mk_toggle_parm("R_arm_ikfk_x", ctrl="R_arm_config_ikfkblend")

The ctrl argument is the short name of the abstract controller that drives the parm. It is needed so the channel binding updates correctly and the value doesn't snap back.

`mk_space_switch(ctrl_name, set_keys=False)`

Triggers a match-and-switch on a space-switch control — snaps the rig pose then switches IK/FK (or any space). set_keys=True also keys the controls at the current frame.

mk_space_switch("R_arm_config_ikfk_switch")

All helpers operate on mk_rig_path automatically — no need to pass the rig path.

`mk_select_ctrls(ctrl_names)`

Selects one or more controls in the APEX viewport. Accepts a single string or a list.

mk_select_ctrls("R_Hand_ctrl")
mk_select_ctrls(["R_Hand_ctrl", "R_armTarget_ik"])

`mk_show_ctrls(ctrl_names)` / `mk_hide_ctrls(ctrl_names)`

Show or hide controls by their short name (without the rig path prefix).

mk_show_ctrls(["L_Hand_fk", "L_Upperarm_fk"])
mk_hide_ctrls("L_armTarget_ik")

`mk_toggle_visibility(ctrl_names)`

If any of the listed controls are visible, hides all. If all are hidden, shows all.

mk_toggle_visibility(["Eye_Look_Static_Ctrl", "Eye_Look_Follow_Ctrl"])

Button Tag API

Tags are user-defined strings assigned to picker buttons in the edit panel. Script buttons can use them to gray out or hide groups of buttons at runtime.

`mk_btn_disable(tags)` / `mk_btn_enable(tags)`

Gray out (disable) or re-enable buttons by tag. Disabled buttons are non-clickable and shown at reduced opacity.

mk_btn_disable("ik_arm")        # single tag
mk_btn_disable(["ik_arm", "ik_leg"])  # multiple tags
mk_btn_enable("fk_arm")

`mk_btn_hide(tags)` / `mk_btn_show(tags)`

Hide or show picker buttons by tag.

mk_btn_hide("fk_arm")
mk_btn_show("ik_arm")

Example: IK/FK Button State Toggle

Assign tags "ik_arm" and "fk_arm" to the relevant buttons in the edit panel, then use a script button:

if mk_get_parm("L_arm_blendikfkblend_x") >= 0.5:  # currently FK
    mk_btn_enable("fk_arm")
    mk_btn_disable("ik_arm")
else:  # currently IK
    mk_btn_enable("ik_arm")
    mk_btn_disable("fk_arm")

Tags and the disabled/hidden state are saved to the picker JSON file.

Raw snippet (no helpers)

If you need full control:

import apex.ui.statecommandutils as scu
import hou

if not mk_rig_path:
    print("No rig selected in picker")
else:
    state_args = {}
    scu.sendCommand("getState", state_args)
    state = state_args.get("state")

    rig = scu.getSceneData(mk_rig_path)
    parms = rig.graph_parms
    current = parms.get("R_arm_ikfk_x", 0.0)
    parms.set("R_arm_ikfk_x", 0.0 if current >= 0.5 else 1.0)

    if state:
        original = list(state.control_manager.controlPaths())
        state._selectControls([f"{mk_rig_path}/R_arm_config_ikfkblend"])
        state._updatePendingFromBindings()
        state.scene.updateEvaluationParms(hou.frame())
        state.control_manager.update(state.scene)
        state.updateChannelPrimsFromParmComponents(components=["x"])
        state.pushChannels()
        state.scene_viewer.curViewport().draw()
        state._selectControls(original)

Example: Select All Controls on Current Rig

import apex.ui.statecommandutils as scu

if mk_rig_path:
    ctrl_mgr = scu.getSceneControlManager()
    all_ctrls = [p for p in ctrl_mgr.controls.keys() if p.startswith(mk_rig_path)]
    scu.sendCommand("selectControls", {
        "controls": all_ctrls,
        "controls_in_tree_format": False,
    })

Example: Tab-Specific Logic

if mk_tab_name == "Body":
    print("On Body tab")
elif mk_tab_name == "Face":
    print("On Face tab")

Notes

mk_rig_path is empty when the rig menu is set to None. All helpers will print a warning and do nothing if no rig is selected.
The script runs in a restricted namespace — only the injected variables and standard Python/Houdini imports are available. Use import normally for anything else (hou, apex, scu, etc.).
rig.graph_parms is a live APEX dict — .set() changes are immediate.
